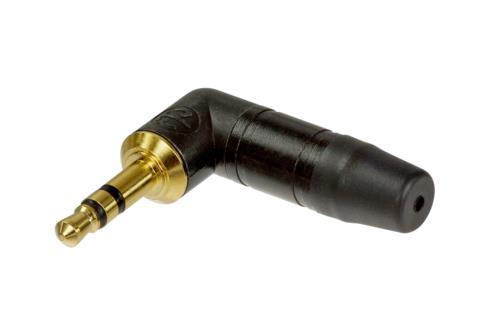

NEUTRIK NTP3RC-B 3,5mm Tiny Plug, 3 poli maschio, angolare
Codice :
NTP3RCB
Condizione :
Nuovo
Prezzo: € 6,00
Prezzo IVA inclusa
Aggiungi
Scheda tecnica
| Title |
NTP3RC-B |
| Connection Type |
Plug |
| Gender |
male |
| Contact resistance |
depends on mating connector mΩ |
| Dielectric strength |
1 kVdc |
| Insulation resistance |
> 2 GΩ (initial) |
| Rated voltage |
<50 V |
| Cable O.D. |
2 - 4.5 mm |
| Wiresize |
0,22 mm² |
| Wiresize |
24 AWG |
| Wiring |
Solder contacts |
| Bushing |
Brass (CuZn39Pb3) + PU, black Cr |
| Contact plating |
0.2 µm Au |
| Contacts |
Brass (CuZn39Pb3) |
| Insert |
Polyamide (PA 6.6 15 % GR) |
| Shell |
Zinc diecast (ZnAl4Cu1) |
| Shell plating |
Black chromium |
| Strain relief |
Polyacetal (POM) |
| Solderability |
Complies with IEC 68-2-20 |
| Temperature range |
-20 °C to +65 °C |
